Electrolysis Hydrogen Generator: How It Works

Electrolysis hydrogen generators are devices that utilize electrical energy to split water into hydrogen and oxygen. This process, known as water electrolysis, has been studied and refined over the years to enhance efficiency and purity of the produced gases. This article delves into the working principles, types, and advanced technologies of electrolysis hydrogen generators, offering an in-depth and layered understanding of the process.

Working Principles of Electrolysis Hydrogen Generators

The fundamental process of water electrolysis involves passing an electric current through water to decompose it into hydrogen and oxygen. Water (H2O) is a polar molecule, meaning it has a positive end (hydrogen atoms) and a negative end (oxygen atom). When an electric current is applied, the water molecules are split into hydrogen ions (H+) and hydroxide ions (OH-).

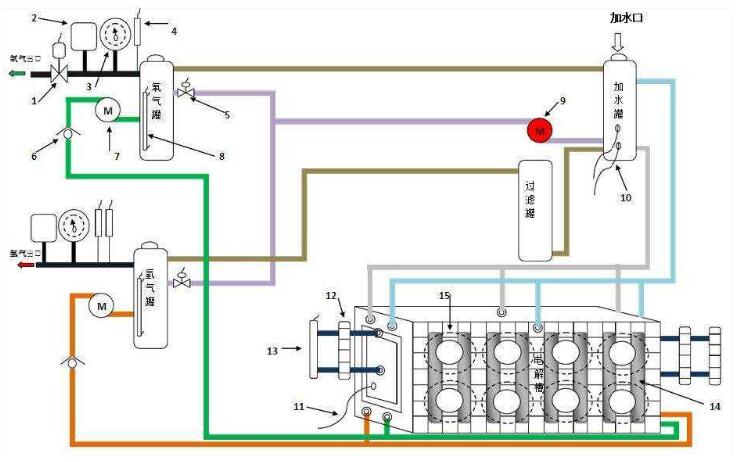

In a typical electrolysis hydrogen generator, the setup includes:

1. Electrolyte Solution: This is usually water, but can also be an aqueous solution of an acid, base, or salt to enhance conductivity.

2. Electrodes: These are conductive materials that serve as the points where the redox reactions (reduction and oxidation) occur. They are typically made of metals such as platinum, titanium, or coated with metal oxides like cobalt, nickel, and iron.

3. Electrolytic Cell: This is the chamber where the electrolysis process takes place. It usually contains the electrolyte solution and the electrodes.

4. Power Supply: Provides the direct current (DC) necessary for the electrolysis process.

During electrolysis:

• Cathode (Negative Electrode): Hydrogen ions (H+) migrate to the cathode and gain electrons, forming hydrogen gas (H2). This is a reduction reaction.

• Anode (Positive Electrode): Hydroxide ions (OH-) migrate to the anode and lose electrons, forming oxygen gas (O2) and water molecules (H2O). This is an oxidation reaction.

The overall reaction can be summarized as:
2H2O(l) → 2H2(g) + O2(g)

Types of Electrolysis Hydrogen Generators

Electrolysis hydrogen generators can be classified based on the type of electrolyte used, the operating temperature, and the technology employed for gas separation.

1. Alkaline Electrolysis Hydrogen Generators

Alkaline electrolysis is one of the oldest and most mature technologies for hydrogen production. It uses an aqueous solution of potassium hydroxide (KOH) or sodium hydroxide (NaOH) as the electrolyte. The electrodes are usually made of nickel-coated steel or nickel alloy.

Advantages:

• High purity hydrogen production.

• Proven technology with long operational lifetimes.

• Lower cost compared to other technologies.

Disadvantages:

• Higher energy consumption due to ohmic losses in the electrolyte.

• Corrosion of electrodes and electrolyte management issues.

2. Acidic Electrolysis Hydrogen Generators

Acidic electrolysis uses sulfuric acid (H2SO4) or hydrochloric acid (HCl) as the electrolyte. This type of generator typically employs platinum or titanium electrodes due to their resistance to corrosion in acidic environments.

Advantages:

• Higher efficiency due to lower ohmic losses.

• Higher hydrogen production rates.

Disadvantages:

• Lower purity of produced hydrogen.

• Corrosion and safety risks associated with handling acids.

3. High-Temperature Electrolysis Hydrogen Generators

High-temperature electrolysis (HTE) operates at temperatures above 800°C. This technology uses ceramic materials for the electrolytic cell and electrodes to withstand the high temperatures. The process can utilize low-quality thermal energy, such as waste heat from industrial processes, to provide the heat needed for the reaction.

Advantages:

• Higher electrolysis efficiency due to enhanced water dissociation at high temperatures.

• Improved energy utilization by incorporating waste heat.

Disadvantages:

• High capital and operational costs.

• Technical challenges in maintaining stable operation at high temperatures.

4. Membrane Electrolysis Hydrogen Generators

Membrane electrolysis uses a special type of ion-exchange membrane to separate the hydrogen and oxygen gases during electrolysis. The membrane allows hydrogen ions (protons) to pass through while blocking other ions and gases.

Advantages:

• High efficiency and purity of produced hydrogen.

• Compact design and ease of operation.

Disadvantages:

• Higher cost due to the specialized membrane material.

• Limited operational lifetime of the membrane.

Advanced Technologies in Electrolysis Hydrogen Generators

Recent advancements in materials science, electrochemistry, and engineering have led to significant improvements in the performance and efficiency of electrolysis hydrogen generators.

1. Enhanced Electrode Materials

Researchers are continuously developing new electrode materials that offer higher catalytic activity, corrosion resistance, and stability. These materials include noble metals like platinum and palladium, transition metal oxides, and composites that combine the best properties of different materials.

2. Improved Electrolyte Formulations

Advancements in electrolyte formulations aim to reduce ohmic losses, enhance conductivity, and stabilize the pH of the solution during operation. This includes the use of solid electrolytes, which eliminate the need for liquid electrolytes and their associated challenges.

3. Membrane Technology Innovations

Membrane technology has seen significant improvements, particularly in the development of ion-exchange membranes with higher selectivity, permeability, and durability. These membranes are crucial for achieving high efficiency and purity in membrane electrolysis systems.

4. Integrated Systems and Hybrid Approaches

To improve the overall efficiency and reduce costs, electrolysis hydrogen generators are being integrated with renewable energy sources, such as solar and wind power. Hybrid systems that combine electrolysis with other technologies, such as thermochemical processes or chemical looping, are also being explored.

Optimization of Electrolysis Hydrogen Generators

Achieving optimal performance in electrolysis hydrogen generators requires careful consideration of various design parameters and operational conditions.

1. Electrode Design and Arrangement

The design and arrangement of electrodes play a crucial role in determining the efficiency and durability of the system. Factors such as electrode material, surface area, and spacing between electrodes can significantly impact the performance.

2. Cell Configuration and Scaling

The configuration of the electrolytic cell, including the number and arrangement of electrodes, affects the overall efficiency and cost of the system. Scaling the system to larger capacities also requires careful consideration of design parameters to maintain efficiency and reliability.

3. Operating Conditions

The operating conditions, such as temperature, pressure, and current density, can have a significant impact on the performance of the system. Optimizing these conditions can lead to higher efficiency and lower energy consumption.

4. System Integration and Control

Effective integration of electrolysis hydrogen generators with renewable energy sources and other technologies requires advanced control systems. These systems monitor and adjust operational parameters in real-time to optimize performance and reduce energy consumption.

Applications of Electrolysis Hydrogen Generators

Electrolysis hydrogen generators have a wide range of applications across various industries and sectors.

1. Renewable Energy Storage

Hydrogen produced through electrolysis can be used as a storage medium for renewable energy sources, such as solar and wind power. This allows for the conversion of intermittent renewable energy into a storable and transportable fuel.

2. Transportation

Hydrogen fuel cells are becoming increasingly popular in the transportation sector, particularly in electric vehicles. Electrolysis hydrogen generators can provide the hydrogen needed for these fuel cells, enabling zero-emission transportation.

3. Industrial Processes

Hydrogen is used in various industrial processes, such as ammonia synthesis, refining, and metal production. Electrolysis hydrogen generators can provide a sustainable and reliable source of hydrogen for these applications.

4. Power Generation

Hydrogen can be used as a fuel in combined heat and power (CHP) systems or in hydrogen turbines to generate electricity. Electrolysis hydrogen generators can supply the hydrogen needed for these applications, contributing to a more sustainable energy mix.

Future Directions and Challenges

Despite the significant advancements in electrolysis hydrogen generators, several challenges remain to be addressed.

1. Cost Reduction

Reducing the cost of electrolysis hydrogen generators is crucial for widespread adoption. This requires continued research and development in materials, electrolytes, and system design to achieve economies of scale and reduce manufacturing costs.

2. Energy Efficiency

Improving the energy efficiency of electrolysis hydrogen generators is essential for reducing the carbon footprint of hydrogen production. This involves optimizing electrode materials, electrolyte formulations, and operational conditions to minimize energy losses.

3. System Integration and Grid Compatibility

Effective integration of electrolysis hydrogen generators with existing energy systems and grids requires advanced control systems and communication technologies. Ensuring compatibility with existing infrastructure and regulations is also a challenge that needs to be addressed.

4. Safety and Reliability

Ensuring the safety and reliability of electrolysis hydrogen generators is crucial for their widespread adoption. This involves rigorous testing and validation of system components and overall system performance to ensure safe and reliable operation.

Conclusion

Electrolysis hydrogen generators offer a promising solution for sustainable hydrogen production. By understanding the working principles, types, and advanced technologies of these systems, we can continue to improve their performance and efficiency. Addressing the challenges of cost reduction, energy efficiency, system integration, and safety will be crucial for the widespread adoption of electrolysis hydrogen generators and their contribution to a more sustainable energy future.
